Writing tests is hard by itself, often it is forgotten that there is a need for different kinds of tests. There are unit tests that cover a specific functionality, and these tests are scoped clearly. There are system tests that cover a bunch of functionalities, but these tests replace the external systems with fake ones. There are also Integration tests – which are like system tests – but this time, external systems are involved in the test process.
Maintaining Integration tests is the hardest part when it comes to maintaining tests; there are a lot of dependencies that are not necessarily under your control. Furthermore, it is not easy to incorporate the integration tests into the CI-pipeline. Each type of test has its own difficulties. In this article, the tests that are going to be discussed are the system and integration tests. WireMock.Net is going to play an important role in converting the hard-to-maintain integration tests into controllable system tests and vice versa.
What is WireMock.Net?
WireMock.Net is a GitHub community project[1] and contains the C# implementation of mock4net which mimics the functionality from the JAVA based WireMock.org. The idea behind WireMock.Net is to mimic the behaviour of a real-life HTTP API. HTTP requests, that are made from the code that is tested, are captured and sent to a WireMock.Net HTTP server (which is part of the testing framework) and as a result an HTTP response is returned that can be verified against an expected behaviour.
Which features are offered by WireMock.Net?
One of the most interesting features of WireMock.Net is that it can be used in Test projects. It can record and playback captured messages. In integration tests WireMock.Net can be setup to act as a proxy in order to capture and/or forward the HTTP requests. WireMock.Net can also be configured to give the matching response when it sees similar requests. This means that integration tests can be turned into system tests and vice versa. Of course, assertions can be written for those incoming requests.
In case the requests are too dynamic, request matching is the technique to be used to generalize incoming requests. Requests can be matched by URL, path, request method, request header, cookies and/or request body.
WireMock.Net can also be used when manual testing is needed but when the dependencies are not ready or are unavailable on the testing environment. It can be run as a standalone tool.
Hello world!
With the understanding of what WireMock.Net is all about, let’s see how it can be set up using XUnit. The example below describes a simple test method that sets up a wiremock.net server. It defines a request and a response. When a Get-request with path "/foo" is sent to the WireMockserver, then a response will be created with status code OK and with content “bar”.
public class GivenAWireMockServer
{
[Fact]
[Trait("Category","SystemTests")]
public async Task WhenSendingAGetRequestTo_foo_ReceiveAResponse_bar()
{
//Arrange
var wireMockServer = WireMock.Server.WireMockServer.Start();
wireMockServer.Given(Request.Create()
.UsingGet()
.WithPath("/hello")
).RespondWith(Response.Create()
.WithStatusCode(HttpStatusCode.OK)
.WithBody("world"));
var httpClient = wireMockServer.CreateClient();
//Act
var barResponse = await httpClient.GetAsync("hello");
var body = await barResponse.Content.ReadAsStringAsync();
//Assert
Assert.Equal(HttpStatusCode.OK, barResponse.StatusCode);
Assert.Equal("world", body);
}
}
Of course the scenario above is to show the simplicity of setting up a test. Let`s see how it can be used as an integration test.
Test scenario
The following code represents a WeatherForecastController with a Get method. Browsing to http://localhost:3011/ weatherforecast results in one of the following messages: "Too hot", "Cozy", "Cold" or "Too cold".
The method consumes a weather forecasting service https://api.open-meteo.com/v1/forecast. In order to consume that service the WeatherForecastController is dependent on the IOpenMeteoClient that is depend on the IHttpClientFactory.
The httpClientFactory creates an HttpClient that will get the forecast from the weather forecasting service. Based on the result, the method in the WeatherForecastController returns one of the messages defined above. The OpenMeteoClient is actually a proxy that helps to hide the fact that an HttpClientFactory is used.
Define the first integration test
Before an integration test can be defined, it is needed to know what messages and responses go back and forth over the line. Fiddler can be used to intercept the traffic from the WeatherForecastController to the open-meteo api. The actual request and the response looks like the following:
request
GET https://api.open-meteo.com/v1/forecast?latitude=51.09&longitude=4.06&daily=temperature_2m_max,temperature_2m_min¤t_weather=true&timezone=Europe%2FBerlin&start_date=2022-07-31&end_date=2022-07-31 HTTP/1.1
Host: api.open-meteo.com
traceparent: 00-1e25de5aeaa91dba70b47f8679ea7dc9-d74d7ed281f40bdb-00
response
HTTP/1.1 200 OK
Date: Sun, 31 Jul 2022 15:13:41 GMT
Content-Type: application/json; charset=utf-8
Transfer-Encoding: chunked
Connection: keep-alive
{“latitude”:53.1,”longitude”:5.06,”generationtime_ms”:0.38301944732666016,”utc_offset_seconds”:7200,”elevation”:3.0,”current_weather”:{“temperature”:22.5,”windspeed”:22.8,”winddirection”:249.0,”weathercode”:3.0,”time”:”2022-07-31T17:00”},”daily_units”:{“time”:”iso8601”,”temperature_2m_max”:”°C”,”temperature_2m_min”:”°C”},”daily”:{“time”:[“2022-07-31”],”temperature_2m_max”:[23.6],”temperature_2m_min”:[17.0]}}
When using WireMock.Net to do the integration test, a mocked IhttpClientFactory is set up to return the HttpClient of the embedded WireMock.Net Server. The WireMock.Net Server runs in the same process but it is reachable from the "outside" as well.
A basic integration test of the Get method on the WeatherForecastController from the test scenario can look like this:
[Fact]
[Trait("Category","IntegrationTests")]
public async Task WhenRequestingCurrentWeatherInformation_
DateShouldBeUtcToday()
{
//Arrange
var application = new WebApplicationFactory()
.WithWebHostBuilder(builder >
{
builder.ConfigureServices(
services > services.AddConfiguredServices());
});
//Act
var httpClient = application.CreateClient();
//Assert
var response = await httpClient.GetAsync(“/WeatherForecast”);
Assert.Equal(HttpStatusCode.OK, response.StatusCode);
var weather = await response.Content.ReadFromJsonAsync
();
...
}
This integration test tests if a filled WeatherForecast response was returned from the api and if the date of the weather forecast matches with the local system date.
Integration test: using the Request Matcher
The code below shows setting up the request matcher and defining the corresponding response. The matching is setup to be fairly generic but can be setup as strictly as desired.
public async Task WhenRequestingCurrentWeatherInformation_
DateShouldBeUtcToday()
{
//Arrange
var openMeteoWireMockServer = WireMock.Server.WireMockServer.Start();
openMeteoWireMockServer.Given(Request.Create()
.UsingGet()
.WithPath(path > path.Contains("forecast"))
).RespondWith(Response.Create()
.WithStatusCode(HttpStatusCode.OK)
.WithBody(..."current_weather":{"temperature
":22.5,"windspeed":22.8,"winddirection":249.0,
"weathercode":3.0,"time":"2022-07-31T17:00"...));
var openMeteoHttpClient = openMeteoWireMockServer.
CreateClient();
var fakeHttpClientFactory = new Fake( );
fakeHttpClientFactory.CallsTo(httpClientFactory >
httpClientFactory.CreateClient(“OpenMeteo”))
.Returns(openMeteoHttpClient);
var application = new WebApplicationFactory()
.WithWebHostBuilder(builder >
{
builder.ConfigureServices(
services >
{
services.AddConfiguredServices();
services.AddScoped(provider >
fakeHttpClientFactory.FakedObject);
});
});
//Act
var httpClient = application.CreateClient();
//Assert
var response = await httpClient.GetAsync("/WeatherForecast");
Assert.Equal(HttpStatusCode.OK, response.StatusCode);
var weather = await response.Content.ReadFromJsonAsync
();
...
}

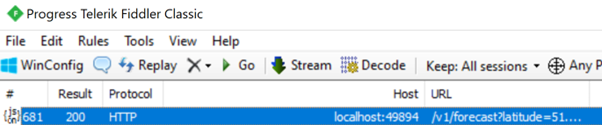

Open Fiddler, execute the test and notice that there is a call from the WeatherForcastController to the open-meteo api. Instead of accessing the original host at the Url "https://api.open-meteo.com/v1/forecast?lattitude=51…", the host being called is the WireMock.Net server, running at localhost listening to port 49894. The Url passed in contains the part "forecast", and that will result in a Http status code 200, with the Http body that was defined in the test.
Integration test: working with recorded messages
A new test is set up in which recorded messages are being used. In this scenario WireMock.Net will play these messages back if the matching request comes in. Fiddler is used as proxy server to monitor what is going on.
In order to prepare the test to work with recorded messages, the response messages need to be captured initially. The code below shows how to record the messages. The recorded messages are stored in the local debug folder.
//Arrange
var openMeteoWireMockServer = WireMock.Server.WireMockServer.Start(
new WireMockServerSettings()
{
ProxyAndRecordSettings = new ProxyAndRecordSettings()
{
Url = "https://api.open-meteo.com",
SaveMapping = true,
SaveMappingToFile = true,
WebProxySettings = new WebProxySettings()
{
Address = "127.0.0.1:8888"
},
ExcludedHeaders = new string[]{"Host", "traceparent"
}
},
StartAdminInterface = true,
FileSystemHandler = new LocalFileSystemHandler(".")
});
var openMeteoHttpClient = openMeteoWireMockServer.
CreateClient();
Open Fiddler and execute the test. Notice that there is an actual call forwarded to the open-meteo API.

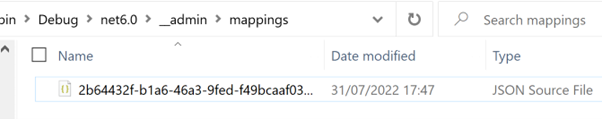

The mappings are recorded in the project’s debug folder as shown below.
Once the initial recording is done, the playback mechanism can be used as shown in the example below. For more advanced use cases, the mapping model can be opened, split or organized. In the example below WireMock.Net will be handling the mapping model the way it was recorded
//Arrange
var openMeteoWireMockServer = WireMock.Server.
WireMockServer.Start(
new WireMockServerSettings()
{
ReadStaticMappings = true
});
//Act
var openMeteoHttpClient = openMeteoWireMockServer.
CreateClient();
...
//Assert
...
Using WireMock.Net in a CI pipeline
WireMock.Net can be used for automated testing in GitHub workflow actions as well. In the pipeline example below a simple GitHub workflow action is setup that will restore, build and test the code. The following yaml is an example.
name: .NET
on:
push:
branches: [ "main" ]
pull_request:
branches: [ "main" ]
jobs:
build:
runs-on: ubuntu-latest
steps:
- uses: actions/checkout@v3
- name: Setup .NET
uses: actions/setup-dotnet@v2
with:
dotnet-version: 6.0.x
- name: Restore dependencies
run: dotnet restore ./src/WiremockSamples.sln
- name: Build
run: dotnet build ./src/WiremockSamples.sln
-no-restore
- name: Test
run: dotnet test ./src/WiremockSamples.sln -nobuild -verbosity normal -filter "Category=SystemTests"
The tests have the attribute Trait with key "Category" and value "IntegrationTests" or "SystemTests". When running all tests, the pipeline will fail because the IntegrationTests are actually trying to contact the actual open-meteo api. This api can not be reached from the the CI server. In order to overcome this, a filter is applied to ensure that only "SystemTests" are executed. Let’s see what happens if the pipeline has been executed. The pipeline results show that the system test ran successfully.
Summary
This article just scratched the surface when it comes to testing with WinMock.Net. There is much more to discover with WireMock.Net, but the above will help to setup integration and system tests in any .NET project that is using Http based services.
The WireMock.Net Wiki[2] pages at GitHub are self-explanatory. The repository contains loads of samples in which the most common scenarios are covered. The ease of use to test Http based services with real requests and responses makes it worthwhile to revaluate existing unit tests. Instead of mocking entire functions just the internal Http requests and responses can be mocked, giving an additional level of control in the software testing process. The sources in this article are shared on GitHub as well[3].
[1] https://github.com/WireMock-Net/WireMock.Net
